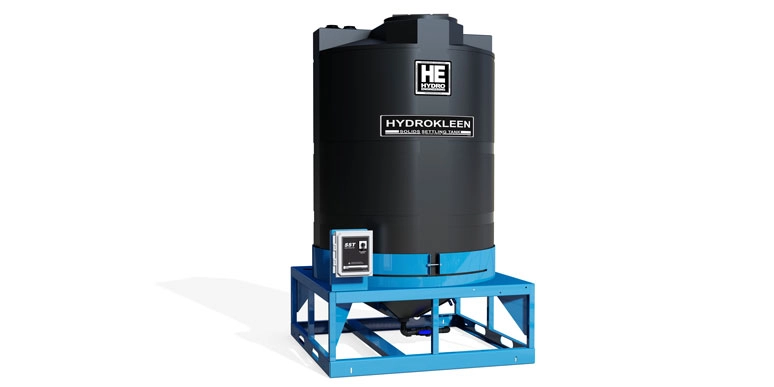

Solids Settling Tank
210 gallon Solid Settling Tank features a cone bottom polyethylene tank that resists corrosion and promotes collection of solids at the bottom of the cone. The system is optionally configured with a variety of inlet, discharge and drain line options depending on process requirements.
SST
The SST is a specially designed above ground cone bottom tank that promotes solids separation from wastewater.
When wastewater enters the system, it is directed vertically downward through a quiescent feed tube where fluid velocity is slowed to promote particle separation from the waste stream. At the bottom of the quieting tube the flow is redirected vertically into a large clarification zone. Velocity reduction and flow reversal combine to maximize gravitational separation and solids settling.
Solids accumulated at the tank's cone-shaped bottom are periodically purged either manually or with optional automatic controls.
Clarified liquid flows out by gravity or can be optionally pumped from the system's discharge port.
Order Parts Request QuoteModel Specifications
Solids Settling Tank
